WHO WE ARE

For over 130 years, M.G. Newell has remained a full-service provider of hygienic equipment for the food, beverage, dairy, pharmaceutical and personal care industries. We carry a broad range of pumps, valves, tanks, fittings, as well as other manufacturing supply needs. Our process engineers work with customers to design and fabricate cost-effective, customized systems to fit their space requirements.

In addition to stainless steel equipment, our Newell Automation team develops full process control systems. Our controls engineers partner and work along with our process engineers to design and build batch control, cleaning or other process parameters into your plant. When M.G. Newell develops smart production systems, Newell Automation takes the process to the next level by allowing you complete and undoubtedly control at the touch of a button.

Our engineers build hygienic design into every system, from pump carts to valve clusters to batch, mixing or inline blending systems. For more about us, click the link below.

ABOUT US

We Make It Better.

THE M.G. NEWELL DIFFERENCE

We start with a solid foundation: Service. M.G. Newell provides unparalleled service to the sanitary processing industry. Our extensive experience allows us to provide project insights with complete focus on the needs of our customers. We stay attuned to your needs throughout every phase of our relationship with you. How do we do this? We listen.

Along with a clear understanding of your business challenges and needs, we at M.G. Newell will be your partner in product solutions.

So how can We Make It Work Better for you? Whether it's calibration and maintenance of your existing equipment or perhaps you need the best welders and engineers in the industry to help upgrade your system, nevertheless we offer high quality engineering and products. Click on one of the boxes below or Contact Us by phone or email!

Calibration and Maintenance

Installation and Fabrication

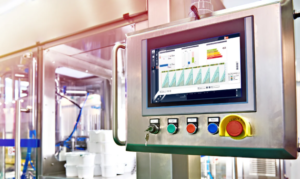

Newell Automation

PRODUCT SPOTLIGHT

VFD Terminology

A VFD is a device that controls the speed of an electrical motor by varying the frequency and voltage of its power supply. The VFD also contains ramp-up and ramp-down capabilities to start and stop the electrical motor smoothly.

Here some reasons why we need to control the speed of an electrical motor.

Save energy and improve system efficiency.
Reach the desired torque or power for the process requirements.
Lower the noise levels of pumps, blowers, fans, compressors, etc.
Reduce mechanical stress on the machines and improve their life cycle.
Improve the working environment.

Learn More

Primary Sections of VFDs

A VFD consists of 3 primary sections: the Rectifier/Converter, the DC Bus, and the Inverter.

The rectifier/converter is the first of the three sections of a VFD’s main power circuit, and first in terms of power flow. Incoming AC line voltage is rectified or converted to DC voltage in the converter section, which consists of diodes, silicon-controlled rectifiers (SCRs), or insulated gate bipolar transistors (IGBTs) connected in a full-wave bridge configuration. One rectifier will allow power to pass through only when the voltage is positive. A second rectifier will allow power to pass through only when the voltage is negative. It requires two rectifiers for each phase of power.

The DC Bus is the 2^nd section of a VFDs main power circuit. The main function of this link is to store, smooth and deliver the DC voltage. The incoming power from the rectifier contains voltage ripples which is smoothed using capacitors.

The 3^rd section of a VFD power circuit is the Inverter. The inverter section of a VFD is the primary difference between an AC drive and a DC driver. This section is comprised of Insulated Gate Bipolar Transistors (IGBTs) which convert the DC voltage back into AC voltage to feed the motor. IGBTs are very fast and very small semiconductor switches that are actuated electronically, thus creating a sinusoidal output current.

WHO WE PARTNER WITH

As a full service supplier of systems, solutions, and components, M.G. Newell embraces each of our customers as a true partner. Your concerns are our concerns. Your problems become our problems. Ultimately, our expert solutions and service become your plan for success. Below are some of our top brand partners and a link to their thoughts on working with us. View Testimonials.
