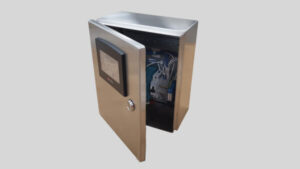

JBC-100 Batch Controller

Process control at your fingertips with the JBC-100 Batch Controller

The JBC-100 Batch Controller puts flow control directly into the hands of the line operator.  The control unit regulates the quantity of flow to either your pump or valve while providing the user with instant feedback on quantities.  Stainless steel controller enclosure meets UL-508A specifications.

  • Simple, user-friendly entry of target flow quantity
  • High resolution touch screen; color display
  • Dual output control for your pump or valve
  • Suitable for any liquid dairy or beverage product
  • 7-day total summary of volumes

Power Requirements:

  • Standalone Controller: 20.4-28.8 VDC, < 10% Ripple, 0.5A
  • Controller with Enclosure & included 24VDC P.S.: 100-132 VAC, 2.1A

Flow Meter Pulse Voltage Requirements:

  • Logic ‘1’: 17-28.8 VDC
  • Logic ‘0’: 0-5 VDC

For pricing or additional details about the JBC-100 Batch Controller contact us at sales@mgnewell.com or call us at 336-393-0100.
